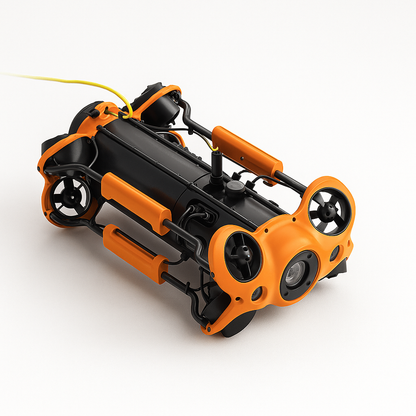

DeepRail Scout R3

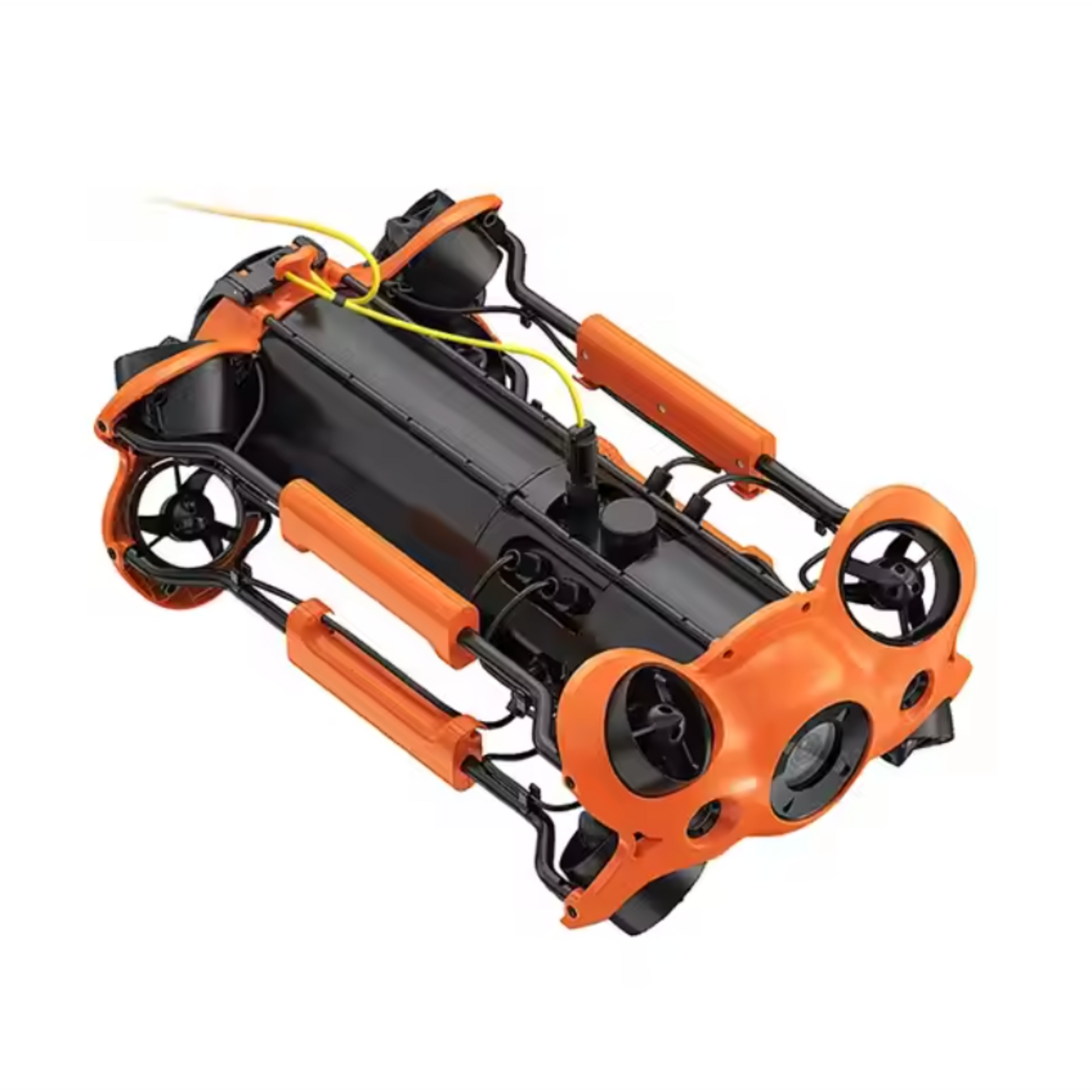

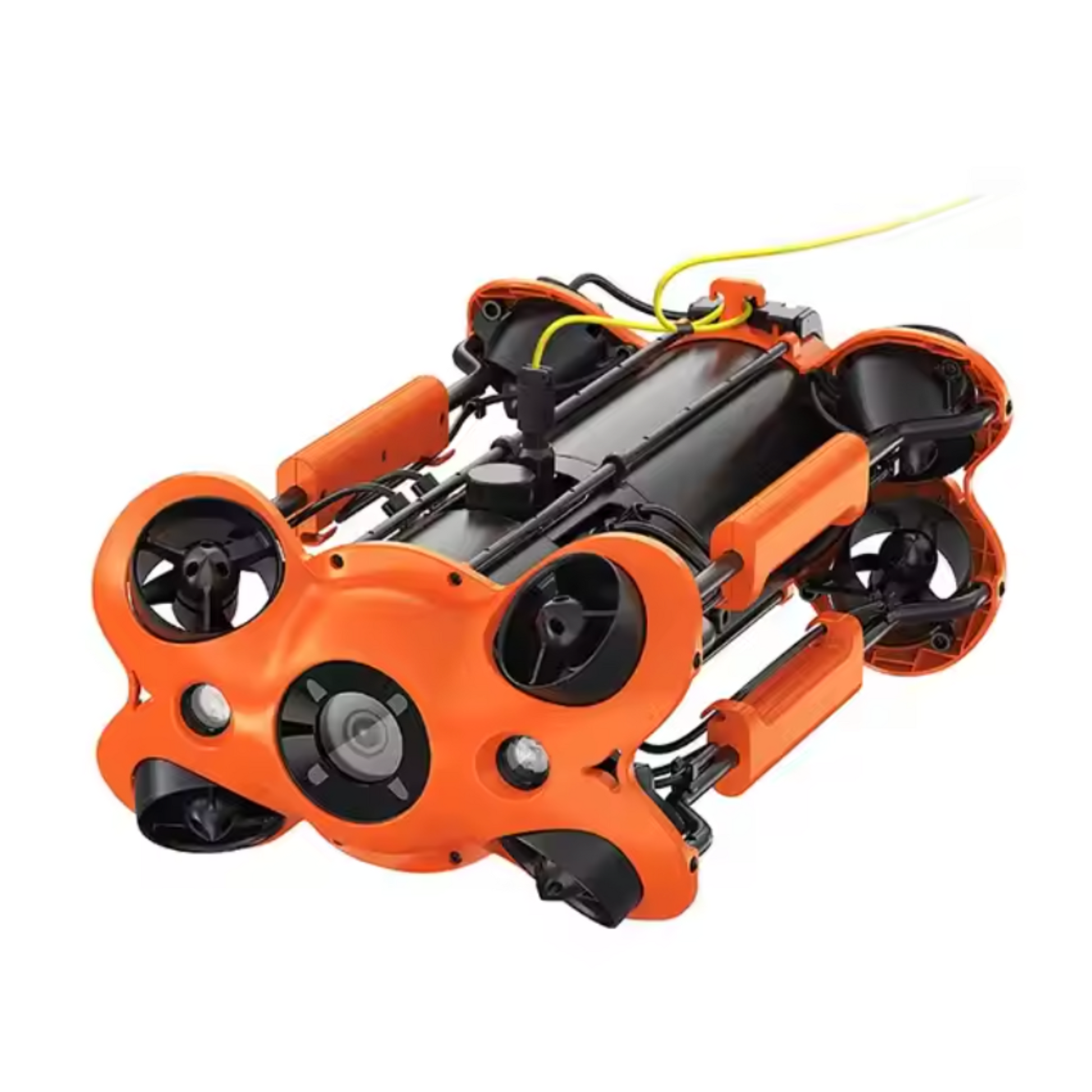

The DeepRail Scout R3 is an industrial, cage-framed inspection ROV engineered for pipelines, dams, and offshore structures. Its narrow cylindrical body, protective alloy rails, and fore/aft thrusters deliver excellent stability in confined spaces while safeguarding the camera and sensors from bumps and debris.

Specifications

• Material: Anodized aluminum spine with shock-absorbing rail cage

• Dimensions: 55 cm (L) x 22 cm (D) cylinder; 6.2 kg in air

• Thrusters: Four vector pods with ducted props for debris resistance

• Max Depth: 200 m rating; fiber-reinforced 200 m tether

• Imaging: 4K wide camera with 5000-lumen bar lights and laser scaler

Features

• RailGuard Frame: Protective cage absorbs impacts within culverts

• Auto-Trim Hover: Precise depth/heading lock for long inspections

• Mod Bay: Native mounts for sonar, methane sensors, and DVLs

• Debris-Ready Ducts: Shrouded props reduce fouling in vegetation

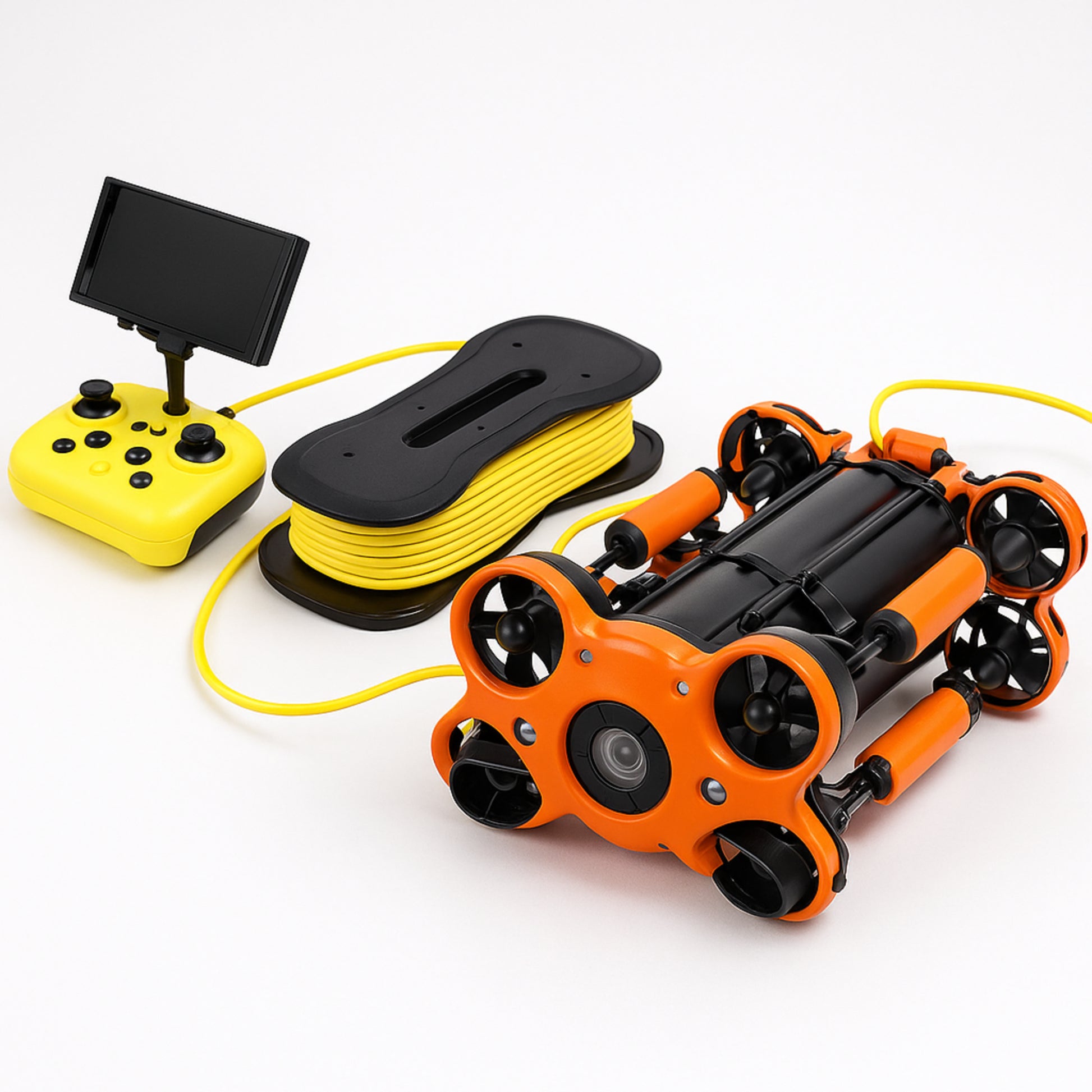

• Tactical Controller: Rugged tablet with hardshell case and glove mode

• Long Endurance: Up to 4 hours with dual high-capacity packs

Maintenance

• Daily: Inspect rail bolts and prop ducts; rinse and dry connectors

• Weekly: Check pressure caps, update firmware, and test leak sensor

• Annually: Replace shaft bearings; service light bar and laser module

Warranty

• Frame & Thrusters: 3 years

• Sensors & Controls: 18 months
