Abysscape GripPro X4

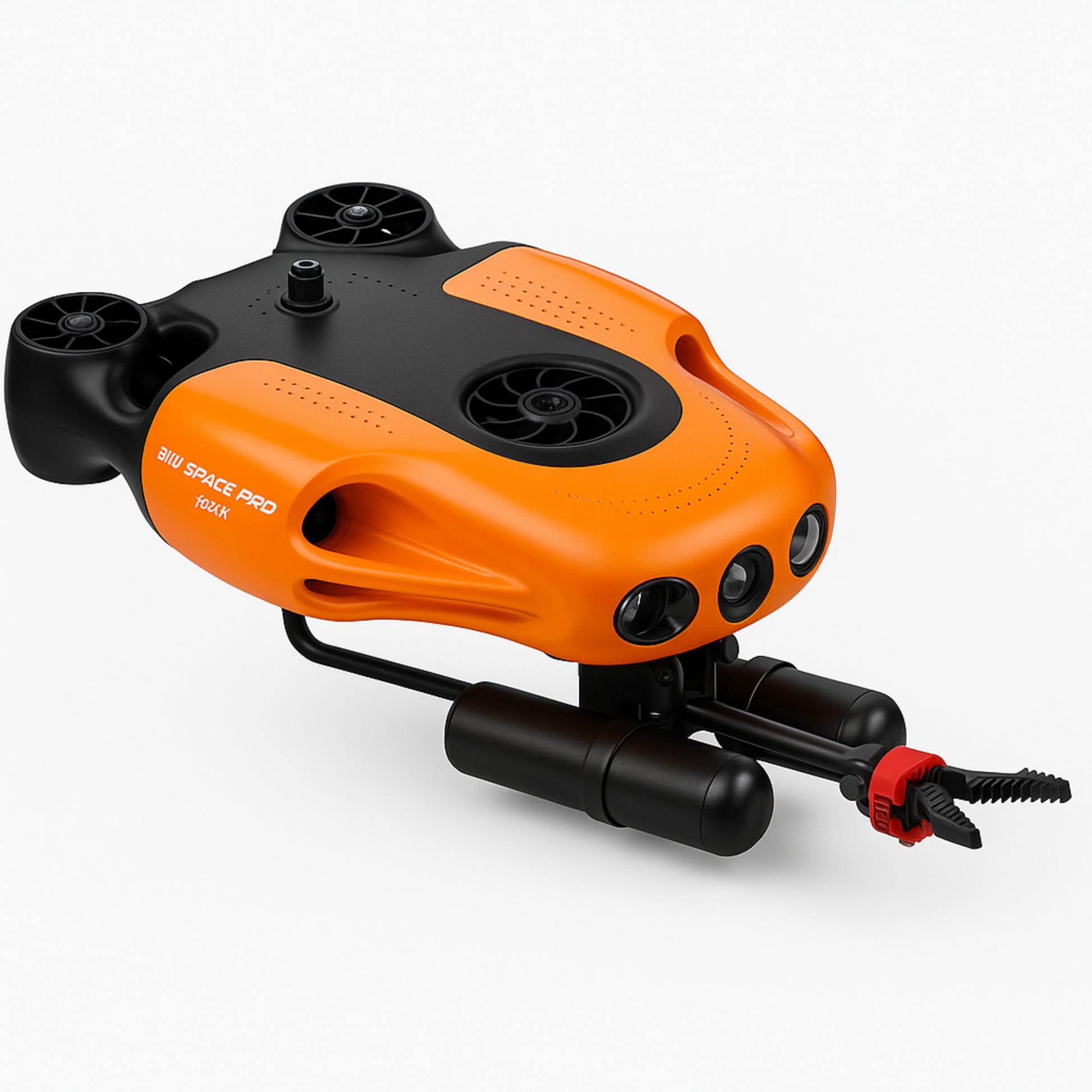

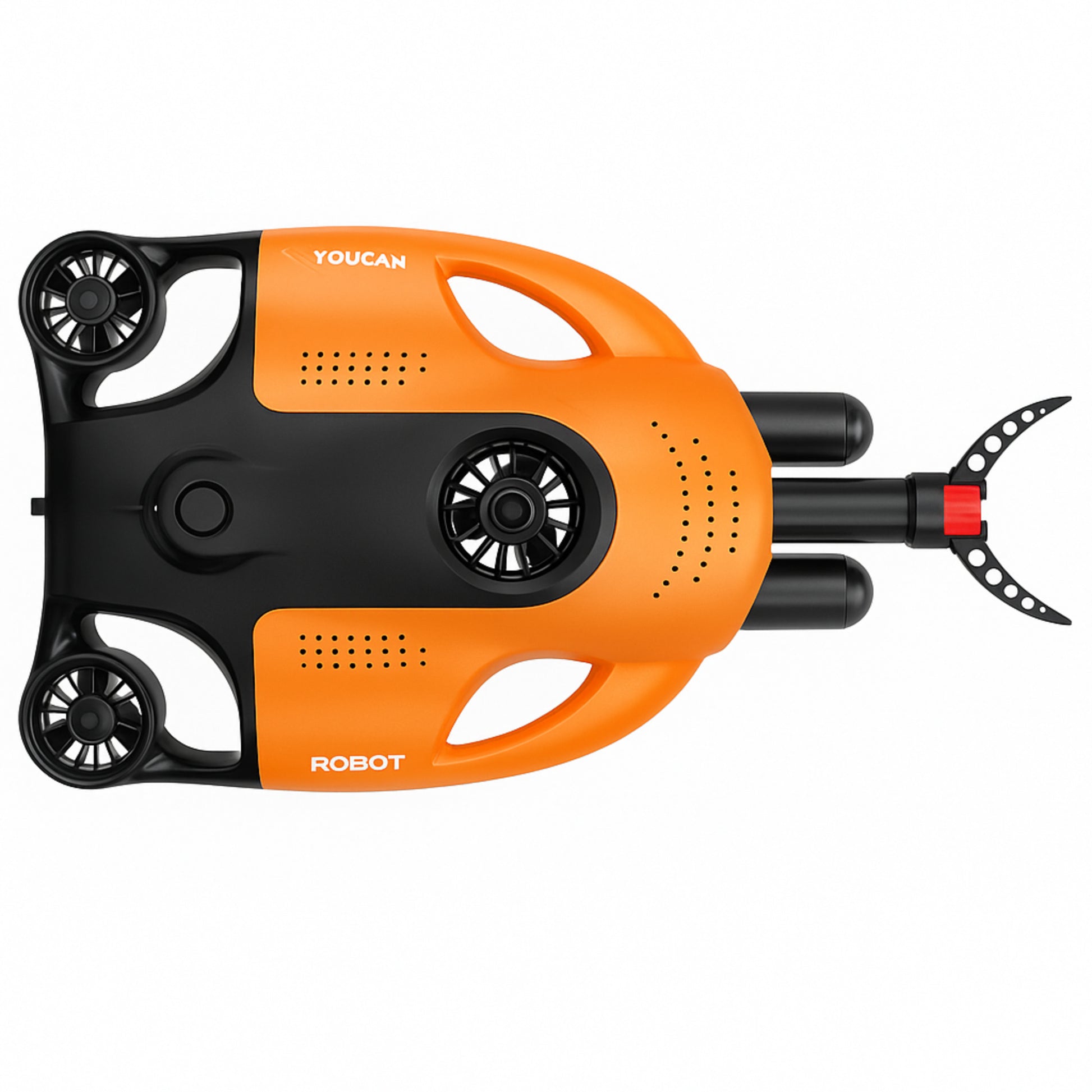

The Abysscape GripPro X4 is a professional ROV built for inspection and light intervention. A front-mounted robotic grabber, tripod camera array, and dual vertical thrusters make it ideal for sampling, salvage, and infrastructure surveys in marinas, reservoirs, and coastal work sites.

Specifications

• Material: Reinforced ABS shell with anodized aluminum rail mounts

• Dimensions: 42 cm (L) x 34 cm (W) x 16 cm (H); 4.8 kg

• Thrusters: Four main + two vertical; 3.5 kgf combined thrust

• Max Depth: 150 m rating; 150 m Kevlar-reinforced tether

• Imaging: 4K/60fps sensor with triple-beam 3000-lumen lighting

Features

• Precision Grabber: 7 kg clamping force with interchangeable jaws

• StationKeep Assist: Auto hold for current compensation during tasks

• Tool Port: 12V accessory rail for sonars, lasers, or sediment samplers

• Tri-LED Array: Individually dimmable lamps to reduce backscatter

• Operator Console: 7? daylight screen with DVR and mission overlays

• 3-Battery Bay: Hot-swap packs for up to 3 hours total runtime

Maintenance

• Daily: Flush grabber hinges; check strain reliefs and tether connectors

• Weekly: Grease rail mounts; verify light seals and camera port

• Annually: Replace grabber pads and O-rings; pressure test housing

Warranty

• Hull & Drive: 2 years

• Electronics & Controls: 18 months
